Use:

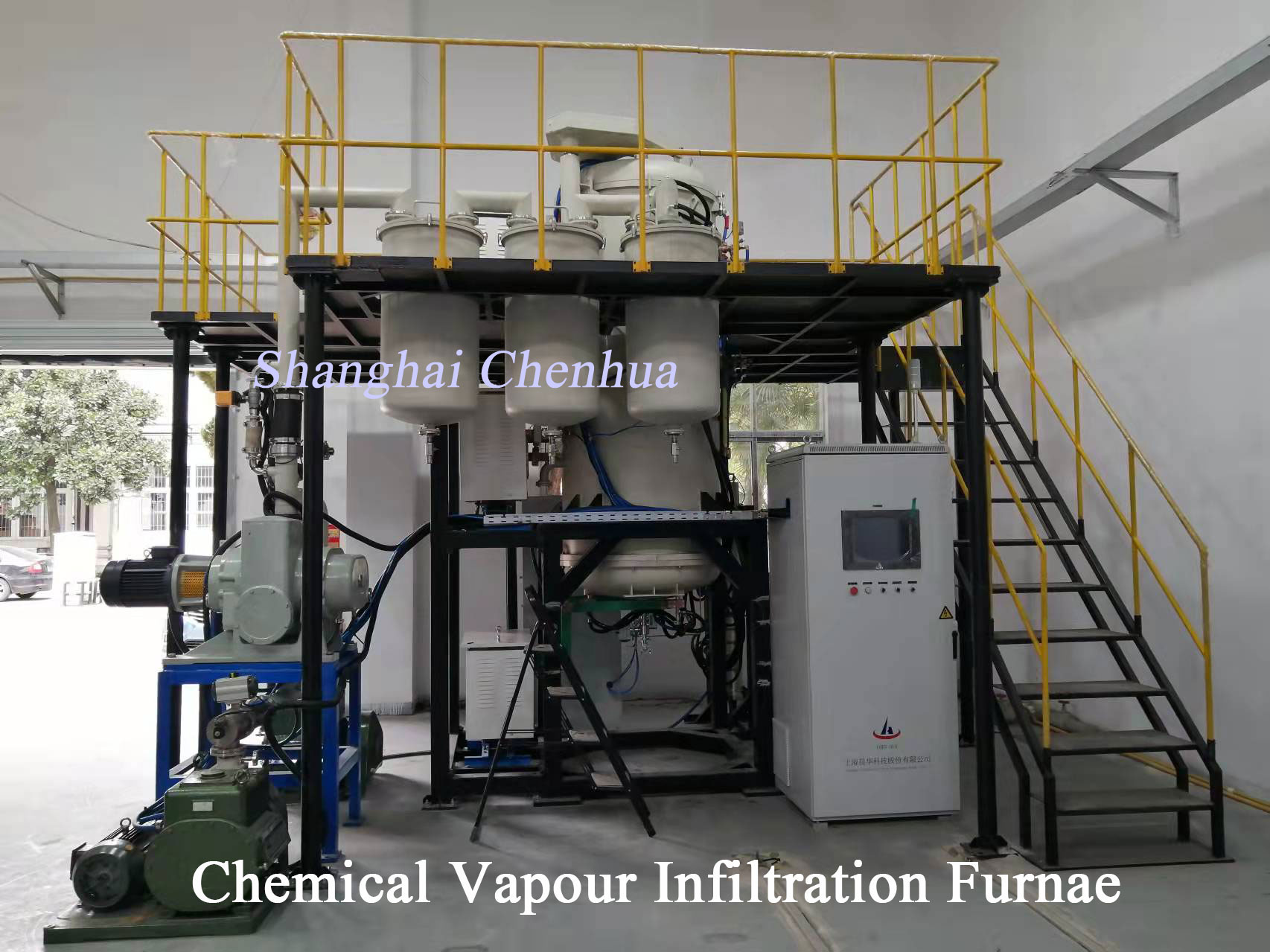

The furnace mainly uses CVD or CVI technology to produce the composite materials of carbon-carbon,
carbon-silicon carbide and silicon carbide-silicon carbide.
Main configuration:
1.Vertical structure with built-in water cooling jacket, furnace shell is made of corrosion-resistant material.
2. Particular gas-in and out configuration contributes to the good temperature uniformity in heating field.
3. Accurate control of atmosphere, vacuum system equipped with the filter, exhaust gas treatment is optional.
4. Main electrical components adopts schneider and Omron brands, stable and reliable performance.
5. Automatic control mode of PLC plus touching screen, ease of operation.
Main technical parameters:
No. | Model | Working zone | Max. temperature | Vacuum | Leaking rate | Temperature uniformity | Power |
1 | ZT-60-13 | ?300X600mm | 1300℃ | 1-100Pa | 0.67(Pa/h) | ±10℃ | 48KW |
2 | ZT-145-13 | ?500X1500mm | 1300℃ | 1-100Pa | 0.67(Pa/h) | ±10℃ | 135KW |
3 | ZT-160-13 | ?600X1500mm | 1300℃ | 1-100Pa | 0.67(Pa/h) | ±10℃ | 160KW |
4 | ZT-240-13 | ?800X1500mm | 1300℃ | 1-100Pa | 0.67(Pa/h) | ±10℃ | 240 |
Furnace can be customized on your request.
