Application：

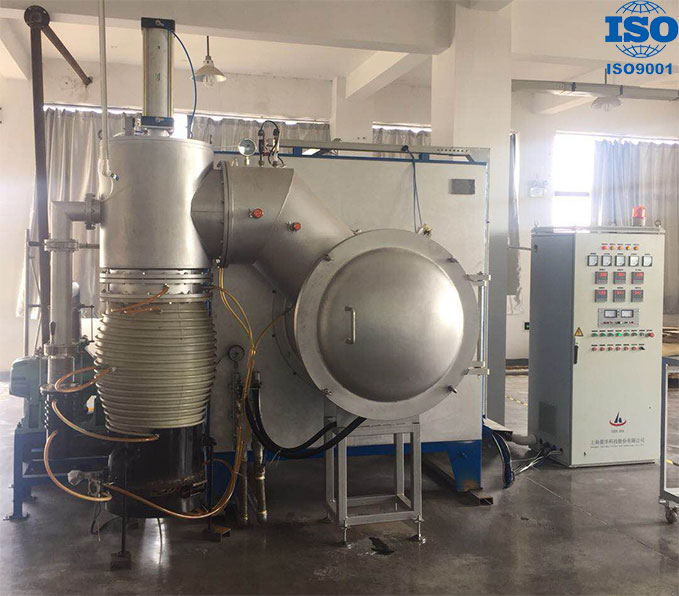

Vacuum brazing furnace are mainly applied for vacuum brazing, solution aging and bright annealing of high speed,
high-alloyed tool and die steel and electrical magnetic material, nonferrous metal and stainless steel etc., also for sintering of magnetic material.
Features：
ZDS series low temperature brazing furnace, control system uses PLC controls mechanical motion. Intelligent temperature
controller controls the temperature. Operation can be switched between automatically and manually. Simple to use.
The furnace possesses over-temperature, over-current automatic sound-light alarm functions.
Safe protection to cut off the power stopping the heating automatically.
Main technical parameters:
| Model | Chamber size (LxWxH) (mm) | Loading capacity (kg/batch) | Max. Temp. (℃) | Uniformity of Temp. | Ultimate vacuum (Pa) | Leak rate (Pa/h) | Heating Power (KW) |
| (℃) | |||||||
| ZDS950-300 | 300X200X200 | 20 | 950 | ±3 | 8.0X10﹣4 | 0.67 | 50 |
| ZDS950-500 | 500X300X300 | 50 | 80 | ||||
| ZDS950-700 | 700X500X500 | 150 | 120 | ||||
| ZDS950-900 | 900X600X600 | 300 | 150 | ||||
| ZDS950-1100 | 1100X600X600 | 400 | 200 |
