Features:
Mode of the pressing either one-way or double-way.
Way of loading either top loading or side loading.

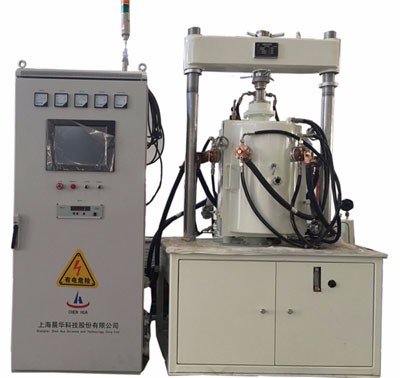

The furnace is made up of furnace body, heating system, electrical control system, heat gaugeing device,
vacuum system and pressing system etc.
1. Pressure can be regulated automatically, automatically stabilize and maintain the pressure.
The rise and drop of pressure can controlled by the program.
2. Displacement can be controlled at any point, which can prevent the mold from being crushed and protect heating elements.
3. Speed of punch decrease and increase can be regulated so as to meet the technical requirements of user.
Main technical parameters:
Model: ZT-45-20Y
1 Max. temperature: 2000℃
2 Working size: Φ280×260mm
3 Pressure: 50T
4 Displacement: 150mm
5 Final vacuum: 5×10-4Pa
6 Gas-charging pressure: ≤0.03MPa
